PSC | 2007-2011 Jeep Wrangler JK 3.8 With Aftermarket Front Axle 8 Inch Lock To Lock Cylinder Assist Steering Kit (No Clamp)
PSC | 2007-2011 Jeep Wrangler JK 3.8 With Aftermarket Front Axle 8 Inch Lock To Lock Cylinder Assist Steering Kit (No Clamp)
APPLICATION:
2007-11 Jeep JK 3.8L with Aftermarket D60 (1 Ton) Axle

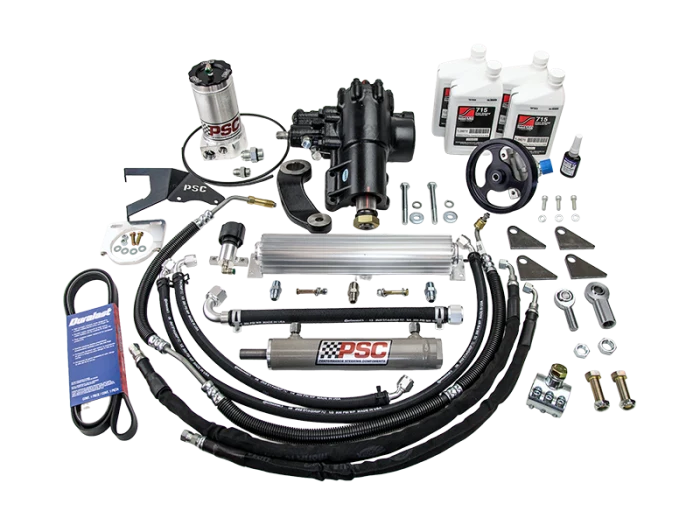

INCLUDES:
SG688R Big Bore XD Steering Gear
Complete Pump Kit: Includes Fluid Reservoir, Fluid Cooler, Fluid Anti-Splash Valve, Serpentine Drive Belt, Brackets, Hoses, & Fittings, and 4 QTS SWEPCO 715 Power Steering Fluid
*NOTE* Not compatible on vehicles equipped with a supercharger.
Cylinder Kit, includes 1.75 X 8.0 Assist Cylinder, Assist Cylinder Installation Hose Kit, Rod Ends and Hardware, and Tie Rod Clamp
WARNING:
Use HWK-688-PP hardware kit when installing a Synergy MFG Track Bar and Sector Shaft Brace with this product.
Using the Factory or the standard PSC supplied bolts with the Synergy MFG Track Bar and Sector Shaft Brace could result in steering gearbox case failure.
NOTES:
The larger size of the BIG BORE XD Steering Gearbox may prohibit the use of some aftermarket track bars.
To achieve the best on-the-road drivability, recommended front axle caster setting is 7 degrees POSITIVE.
A high steer or drag link flip kit may need to be installed on vehicles with more than four (4) inches of lift.
There are no drop Pitman arms on the market that fit the Big Bore XD Steering Gearbox.
PSC recommends using SWEPCO 715 Power Steering Fluid in all Cylinder Assist Kits.
Original: $3,400.00
-65%$3,400.00
$1,190.00
Description
APPLICATION:
2007-11 Jeep JK 3.8L with Aftermarket D60 (1 Ton) Axle
INCLUDES:
SG688R Big Bore XD Steering Gear
Complete Pump Kit: Includes Fluid Reservoir, Fluid Cooler, Fluid Anti-Splash Valve, Serpentine Drive Belt, Brackets, Hoses, & Fittings, and 4 QTS SWEPCO 715 Power Steering Fluid
*NOTE* Not compatible on vehicles equipped with a supercharger.
Cylinder Kit, includes 1.75 X 8.0 Assist Cylinder, Assist Cylinder Installation Hose Kit, Rod Ends and Hardware, and Tie Rod Clamp
WARNING:
Use HWK-688-PP hardware kit when installing a Synergy MFG Track Bar and Sector Shaft Brace with this product.
Using the Factory or the standard PSC supplied bolts with the Synergy MFG Track Bar and Sector Shaft Brace could result in steering gearbox case failure.
NOTES:
The larger size of the BIG BORE XD Steering Gearbox may prohibit the use of some aftermarket track bars.
To achieve the best on-the-road drivability, recommended front axle caster setting is 7 degrees POSITIVE.
A high steer or drag link flip kit may need to be installed on vehicles with more than four (4) inches of lift.
There are no drop Pitman arms on the market that fit the Big Bore XD Steering Gearbox.
PSC recommends using SWEPCO 715 Power Steering Fluid in all Cylinder Assist Kits.
