PacBrake | 24V HP625 Series Heavy Duty Air Compressor Kit Vertical Pump Head HP10625V-24 Air Compressor Entire Unloader Block Assembly Kit W/ Pre-Built Harnesses Kit HP10116-24

24V HP625 Series Heavy Duty Air Compressor Kit consists of HP625 Series Pacbrake HP10625V-24 Air Compressor and the entire unloader block assembly kit with pre-built harnesses.

(Kit Number HP10116-24) Pacbrake's 625 Series heavy duty Pacbrake Air Compressors have a 100 percent duty cycle and are offered in two pump head configurations-Vertical and Horizontal.

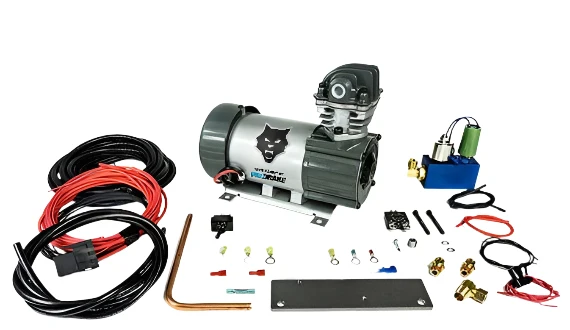

This kit includes

• Pacbrake's HP625 Series Pacbrake Air Compressor (Part Number HP10625V-24)
• The entire unloader block assembly kit with pre-built harnesses
• (Part Number HP10116-24). All you need is a mounting location, power, ground wire and a pneumatic air line

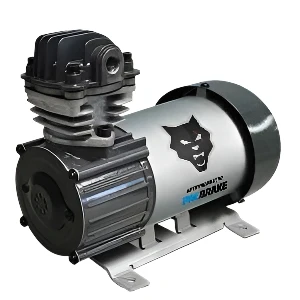

Compressor features

• Copper wire wound permanent magnet motor
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve

Compressor Specifications

• 24V DC
• 100 percent duty cycle at 100 PSI
• 3/4 HP
• Vertical head configuration
• Wize is 11.5 x 6 x 9.5 or 293 mm x 153 mm x 242 mm (LxWxH)
• Weight is 17.7 lbs
