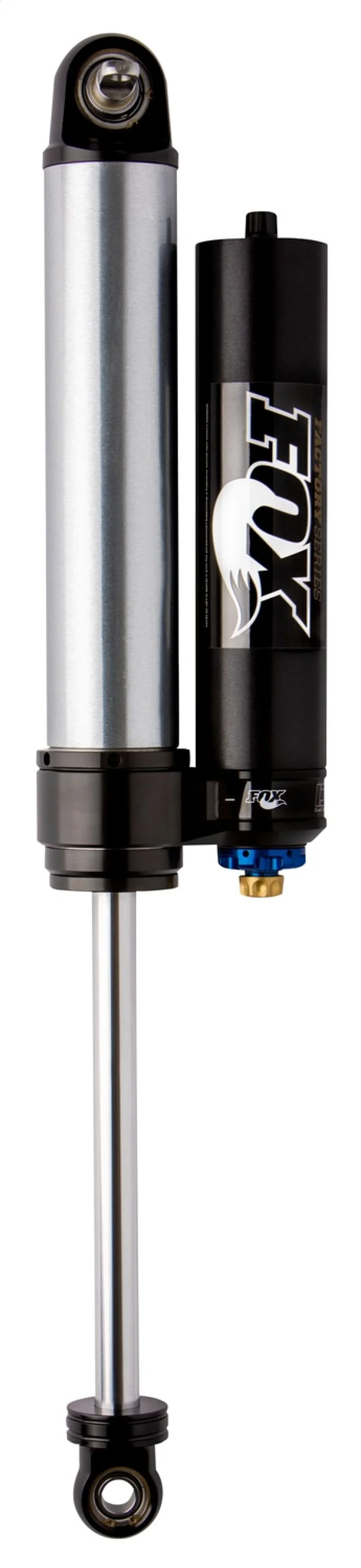

Fox | 2007-2018 Jeep Wrangler JK 2.5 Factory Series Internal Bypass Reservoir Rear Shock Pair With DSC Adjuster | 2.5-4 Inch Lift

The Factory Race Series 2.5 Internal Bypass shock delivers patented race-dominating position sensitive damping technology and performance in a hassle free bolt-on kit. Patented, position sensitive internal bypass technology contains internal passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.

These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on with your aftermarket long-arm suspension lift kit. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities. The Factory Race 2.5 Series Internal Bypass shocks utilizes all of the same components from our race winning Trophy Truck shocks with stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.

---

Body	2.5" smooth bore zinc plated seamless steel body
Body Plating	Zinc-plated for long lasting finish
Reservoir	2.5" Smooth bore and honed seamless alloy reservoir
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft	7/8" 17-4 H900 stainless steel hard-chrome plated
Piston	6061-T6 hard-anodized, high flow aluminum piston
Valving	Application specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal Optional high temperature Viton seals
Bearing	PTFE-lined, heat-treated, alloy steel spherical
Adjuster Type	DSC - Dual Speed Compression
Extended	27.850
Compressed	17.130
Travel	10.720
Top Mount	Bar Pin
Bottom Mount	Eyelet
