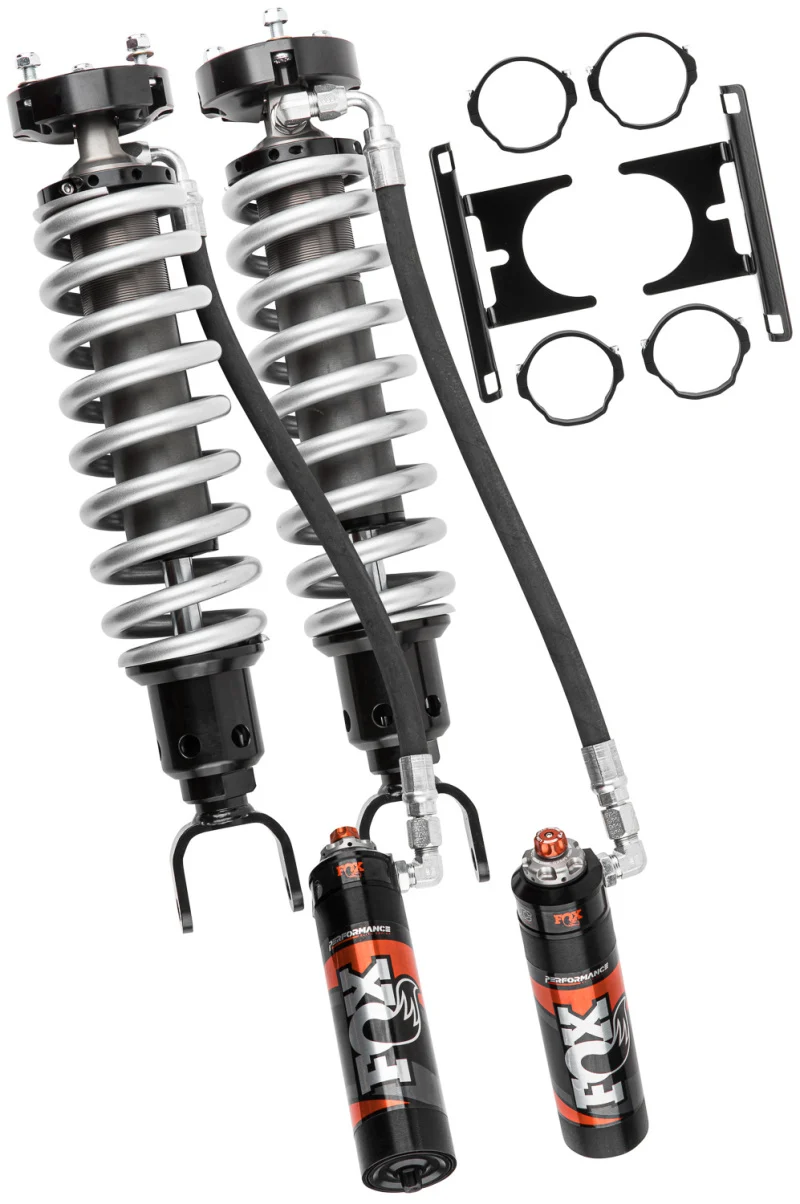

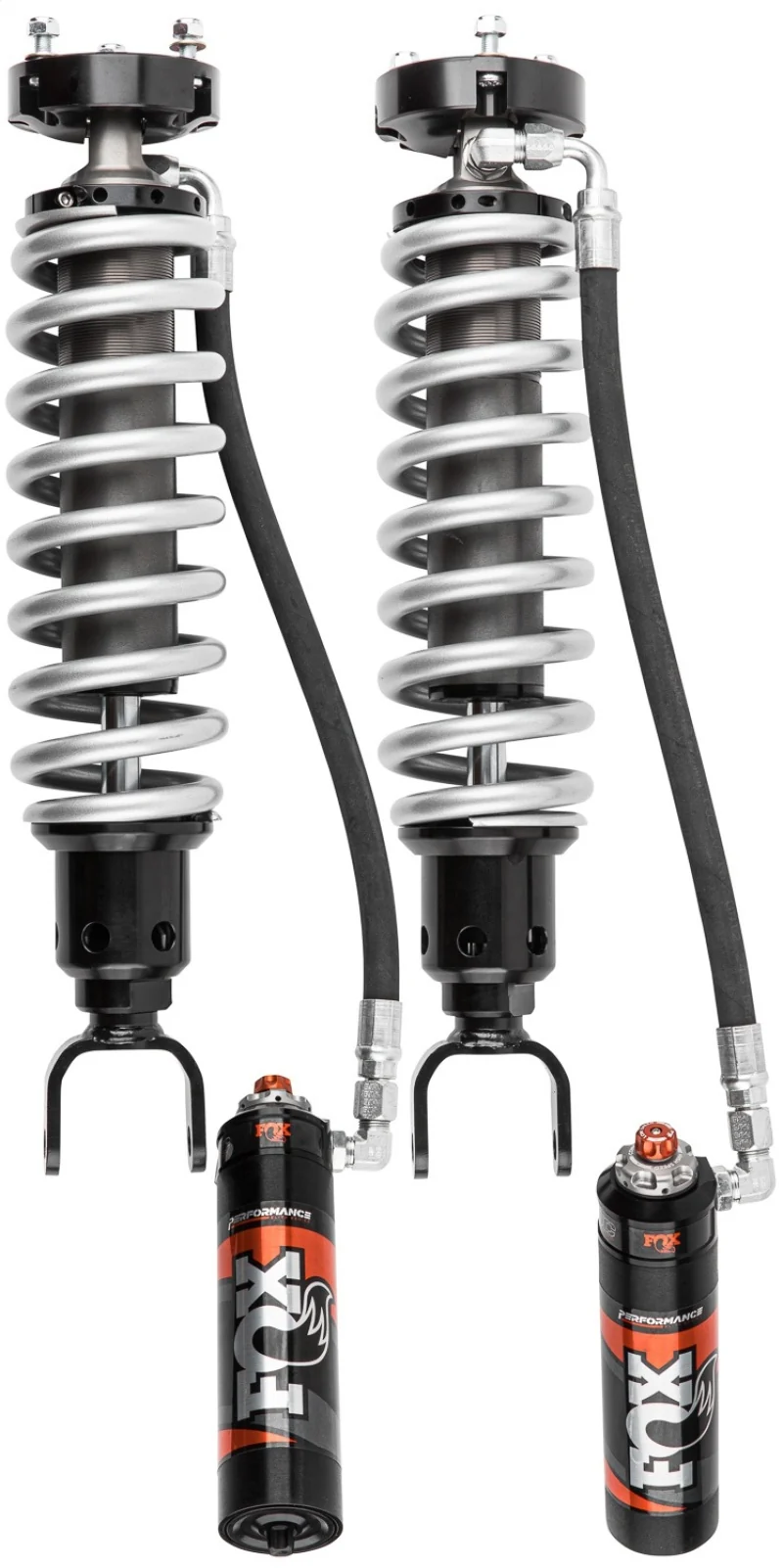

Fox | 2019+ Dodge Ram 1500 DT 4WD 2.5 Performance Series Remote Reservoir Front Coilover With DSC Adjuster | 2-3 Inch Lift
Fox | 2019+ Dodge Ram 1500 DT 4WD 2.5 Performance Series Remote Reservoir Front Coilover With DSC Adjuster | 2-3 Inch Lift
NOTES: Requires aftermarket upper control arms. Does NOT fit OEM air ride or TRX models.
Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our bolt-on Performance Elite Series Coil-over Reservoir shocks provide improved damping in any terrain.
Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Performance Elite Series Coil-over Reservoir shocks deliver.
| Body | 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
|---|---|
| Body Plating | Hard-anodized for a durable finish |
| Reservoir | 2.5" Smooth bore and honed seamless alloy reservoir |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Spring | Application specific, adjustable 3.0 Eibach® racing springs |
| Shaft | 7/8" hard chrome plated steel shafts |
| Piston | 6061-T6 hard-anodized, high flow aluminum piston |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical |
| Adjustments | Ride height preload ring |
| Adjuster Type | DSC - Dual Speed Compression |
| Extended | 23.070 |
| Compressed | 16.830 |
| Travel | 6.240 |
| Top Mount | OEM |
| Bottom Mount | Clevis |
| Fitment notes | Requires Upper Control Arm | Does Not Fit Air Ride Models |
