Baja Designs | 2010-2016 Ford Raptor ONX6 40 Inch LED Light Bar Kit

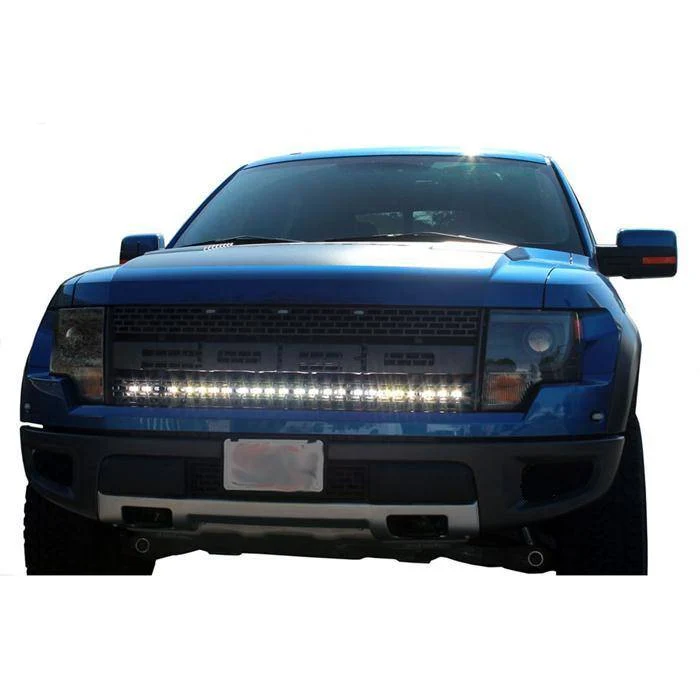

Now you can easily mount the same light used by top race teams and keep it hidden cleanly behind the grill of your Ford Raptor. The 40" OnX6 provides enough light for high speed race teams; now you can harness the power of the OnX6 and hide it till’ you light it.  The new OnX6 LED Light Bar is the only light bar on the market that has the distance of an 8” HID with the smooth spread of an LED. If you’re looking for the guaranteed farthest projecting LED light on the market, look no further. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

The OnX6™ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications: Lumens: 25,800 Utilizing 24 Cree XM-L2 LEDs Wattage/Amps: 252W / 21A Dimensions: 40" x 4.29" x 2.69" Weight: 15.05 lbs LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof up to 9ft & Pressure Washable) IK10 Compliant (Mechanical Impact Testing)

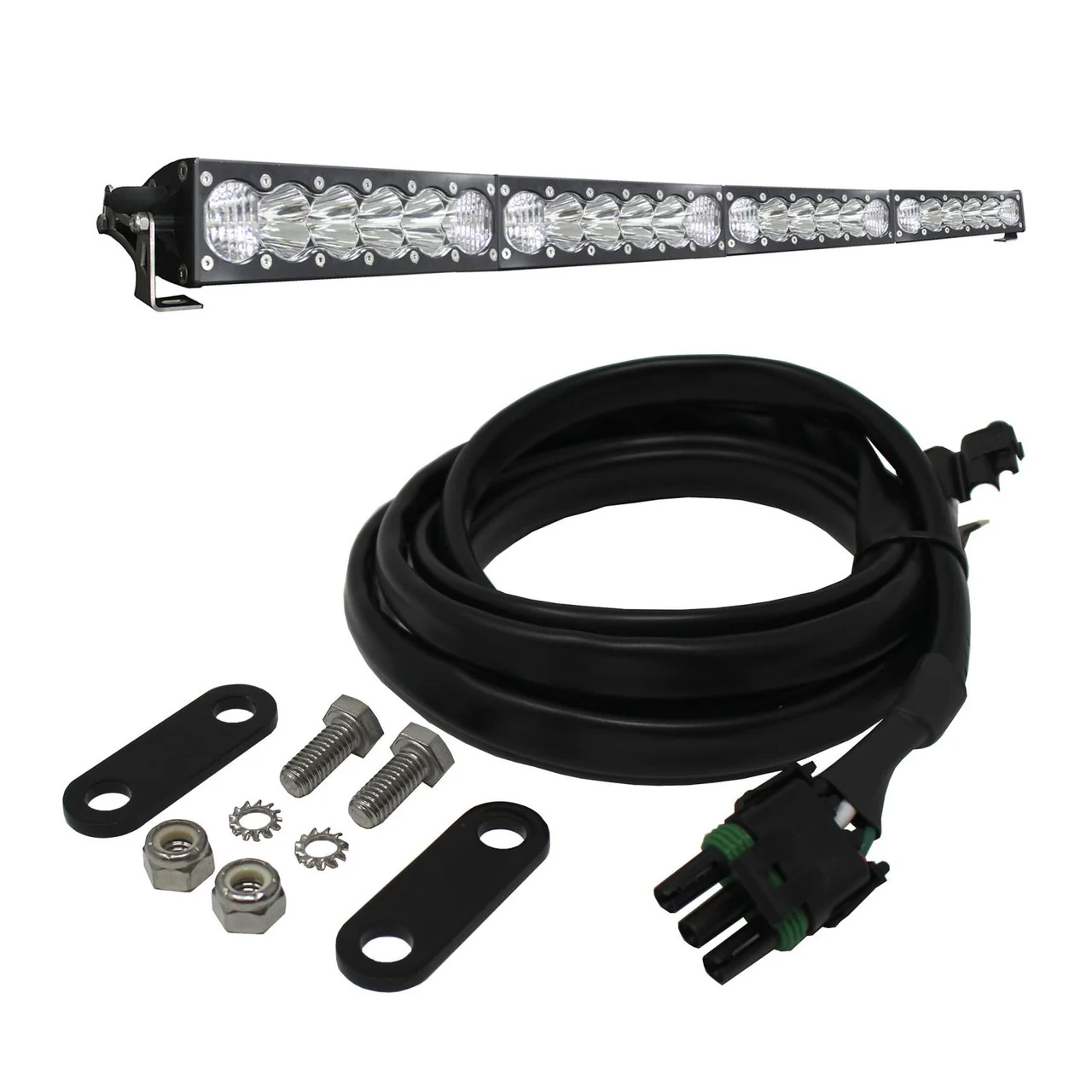

Includes:

• x1 40" OnX6 LED Light Bar
• x1 Ford Upfitter Wiring Harness OnX6
• OEM, Raptor BTG Bracket Set

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).
